Model No.: EI 48
Phase: Single
Model No.: Ei 11000145
Usage: Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer
Frequency Characteristics: Low Frequency
Shape Of Core: EI
ODM/OEM: Acceptable
Transport Package: Pallet
Specification: Ei48
Trademark: Customized
Origin: China
HS Code: 8504319000
Production Capacity: 30000000
Application: Power, Electronic, Instrument, Lighting, Rectifier
Core: silicon steel sheet
Cooling Method: Dry-Type Transformer
Winding Type: Multi-Winding Transformer
Certification: ISO9001, IATF16949, ISO14001
Productivity: 3 million pcs per month
Brand: IHUA
Transportation: Ocean,Land,Air
Place of Origin: China
Certificate: ISO 9001, ISO 14001, IATF16949
Port: shenzhen,humen,hongkong
The laminated transformer is made up of laminated iron cores, which are stacked together to reduce eddy current losses and improve the efficiency of the transformer，The EI 48 laminated transformer is available in different voltage and power ratings
Input Voltage: AC 100---240V;50/60Hz to be customized
Output Power: 5VA -1000VA to be customized
Products Advantages:
1. Low loss
2. High Reliability
3. High Efficiency
4. Stable output
5. It can be customized according to the requirements of customers and provide total design solutions to customer
Application:
1. Photovoltaic
2. Household Appliance
3. Energy
4. Communications
5. High-power supply
6. Automotive electrics
|

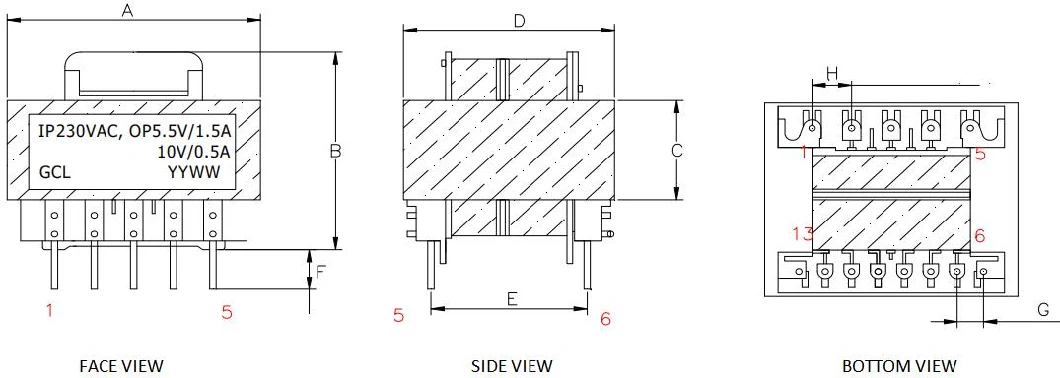

Spec |
Size(mm) | |||||||
| A | B | C | D | E | F | G | H | |
| EI48 | 49.0 | 44.3 | 26.5 | 41.0 | 30.8 | 5.0 | 5.0 | 7.5 |
We can do OEM and ODM ,Below list are the common types of Transformer，inductor ,coil ,current sensor.
We enjoyed a high reputation and keep reliable cooperation with global valued customers such as Panasonic,Bel power, Honeywell, Jabil, Otis, GE,Resideo, ABB, Checkpoint, Eaton.
What we can build for you? Get in touch with us now ,we can help you.
| NO. | Product Name | Type | Detailed Size | ||||||||||
| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | EP7, EP10, EP13 | ||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, | ||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
| 2 | Common mode chokes(Line filters) | UU | UU9.8, UU10.5, UU16 | ||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| SQ | SQ1212, SQ1515, SQ2418 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 5X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| 4 | SMD power inductors | Unshielded | MT, MTQ, MTF, MTG | ||||||||||
| Shielded | MTH, MTHII, MTP, MTB, MTE, MTL, MTF | ||||||||||||
| 5 | Low frequency transformers | EI | EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114 | ||||||||||
| Toroidal | OD:40mm---130mm;ID:20mm---100mmm;H:10mm---50mm. | ||||||||||||
| 6 | Planar transformer | EI | Ei22 | ||||||||||
| 7 | CT | UF | UF15,Zero sequence current transformer, precision current transformer | ||||||||||
| 8 | Coil | T | 185*60,23.8 | ||||||||||
