Model NO.: T 19010420
Range Of Application: Choke
Packaging Form: Generic
Inductor Value: Fixed Inductor
Core Type: Amorphous Alloy
Cooling Method: Dry-Type Inductor
Shape of Core: Ring
Coo: China Factory
Price: Negotiable
ODM/OEM: Available
Phase: Single
Certification: UL, ISO9001, IATF16949, ISO14001
Frequency Characteristics: Power Frequency
Winding Type: Multi-Winding Inductor
Transport Package: Pallet
Specification: T38*19*13
Trademark: Customized
Origin: China
HS Code: 8504500000
Production Capacity: 30000000
Type: Choke Inductor
Structure: Mutual Inductor
Working Frequency: High Frequency
Structure Of Winding: Multilayer Coil
Nature Of Operation: Choke Coil
Structure Of Magnetizer: Ferrite Coil
Brand: Customized
Application: Power, Electronic, Instrument, Lighting, Rectifier
Productivity: 3 million pcs per month
Brand: IHUA
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Certificate: ISO 9001, ISO 14001, IATF16949
Port: shenzhen,humen,hongkong
Common mode chokes inductor are commonly used in power supplies, data communication systems, and other electronic devices where EMI suppression is required. They can be found in various forms, such as surface mount devices (SMDs), through-hole components, or integrated into connectors.
Inductance: 0.5MHz---20MHz to be customized
Products Advantages:
1.Low loss
2.Excellent reliability
3.High Efficiency
4.Easy installation
5.It can be customized according to the requirements of customers and provide total design solutions to customer
Application:
1.Household Appliance
2.Telecom
3.Consumer electronics
4.Switching power supply
5.Automatic control
6.Green lighting
7.Electric vehicles

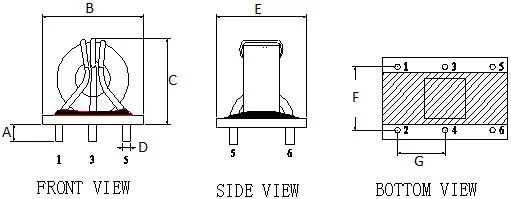

| Spec | Size(mm) | ||||||
| A | B | C | D | E | F | G | |
| T38*19*13 | 4.0 | 43.0 | 47.0 | 2.6 | 28.0 | 21.0 | 16.0 |
We can do OEM and ODM ,Below list are the common types of Transformer，inductor ,coil ,current sensor.
We enjoyed a high reputation and keep reliable cooperation with global valued customers such as Panasonic,Bel power, Honeywell, Jabil, Otis, GE,Resideo, ABB, Checkpoint, Eaton.
What we can build for you? Get in touch with us now ,we can help you.
| NO. | Product Name | Type | Detailed Size | ||||||||||
| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | EP7, EP10, EP13 | ||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, | ||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
| 2 | Common mode chokes(Line filters) | UU | UU9.8, UU10.5, UU16 | ||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| SQ | SQ1212, SQ1515, SQ2418 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 5X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| 4 | SMD power inductors | Unshielded | MT, MTQ, MTF, MTG | ||||||||||
| Shielded | MTH, MTHII, MTP, MTB, MTE, MTL, MTF | ||||||||||||
| 5 | Low frequency transformers | EI | EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114 | ||||||||||
| Toroidal | OD:40mm---130mm;ID:20mm---100mmm;H:10mm---50mm. | ||||||||||||
| 6 | Planar transformer | EI | Ei22 | ||||||||||
| 7 | CT | UF | UF15,Zero sequence current transformer, precision current transformer | ||||||||||
| 8 | Coil | T | 185*60,23.8 | ||||||||||
